1) The stone engraving machine has high precision, high stability, high work efficiency, and is easy to learn. Even operators without professional skills can operate it easily and accurately.
2) The stone CNC engraving machine can do three-dimensional relief, pointed bottom carving, flat bottom carving, line carving, chamfering, drilling, relief, lettering, hollowing, cutting, seamless splicing, surface treatment, countertop milling, etc.
3) Applicable materials include marble, granite, jade, bluestone, black stone, ceramics, glass, plexiglass, PVC board, aluminum-plastic board, bamboo, agate, jade, artificial materials, synthetic materials, etc.
1. Stone CNC Router Machine Specification
X, Y axis travel | 1300*2500, 1500*3000, 2000*3000 mm |
Z axis travel | 200 mm or others |
Spindle power | 3 kW water cooling 24000rpm or higher power; HSD3 kW air cooling 18000rpm or higher power |
Repeatability | +/- 0.05 mm |
Maximum rapid travel speed | 15 m/min-40 m/min |
Drive system X axis and Y axis | Rack and pinion, guide linear bearings |
Drive system Z axis | Lead screw, guide linear bearings |
Standard worktable | Coolant tray with wheels can easily move stones. |
Motor | Stepper/Servo |
Spindle protection device | Digital spindle temperature monitor (not for air-cooled spindle) |
Operating voltage | AC380V/50HZ, 3PH; 220V/60Hz,3PH; AC440V/50HZ, 3PH |
Command language | G code and M code |
Chuck | ER20 or ER25 or ER32 |
Operating system | DSP handheld controller/ NC studio/ Syntec |
2. Product Features and Applications
Features:
1) The whole high-quality steel is welded and tempered to ensure the long-term use of the machine without deformation.
2) The use of sophisticated accessories greatly improves the reliability and stability of the machinery, to ensure the continuous operation of the machine.
3) Automatic touch man-machine interface, intuitive operation, simple and convenient.
Applications:
1) Our stone CNC engraving machines can do three-dimensional relief, pointed bottom engraving, flat bottom engraving, line engraving, chamfering, drilling, relief, lettering, hollowing, cutting, seamless splicing, surface treatment, countertop milling, etc.
2) Stone engraving machines are widely used in architectural decoration, our machines can engrave various exquisite patterns and designs on building materials to improve the artistic value of the building.
3) In the field of artwork production, stone engraving machines can transform designers' creativity into actual works, providing artists with more possibilities.
4) In tombstone engraving, stone engraving machines can realize personalized customization of tombstones and create a unique monument for the deceased.
3. Product Details
1) CNC system
The system has stable performance, simple operation, high and soft lines, cold-proof, anti-interference, and will not hinder you due to software problems.
2) Automatic oiling
The automatic oiling system is adopted to save resources, save time, and make maintenance more convenient.
3) Tailstock
The base slide adopts a thickened and enlarged diameter rail slide, and the M30 screw locking nut is durable, does not deform or loosen.
4) Square steel gantry
The one-centimeter thick square steel gantry after heat treatment is adopted, and the machining center is punched and finely processed, with good rigidity, stable operation and higher precision.
5) Spindle
The spindle adopts a high-power stone-specific motor, which has a long service life, strong cutting and grinding force, and stable operation.

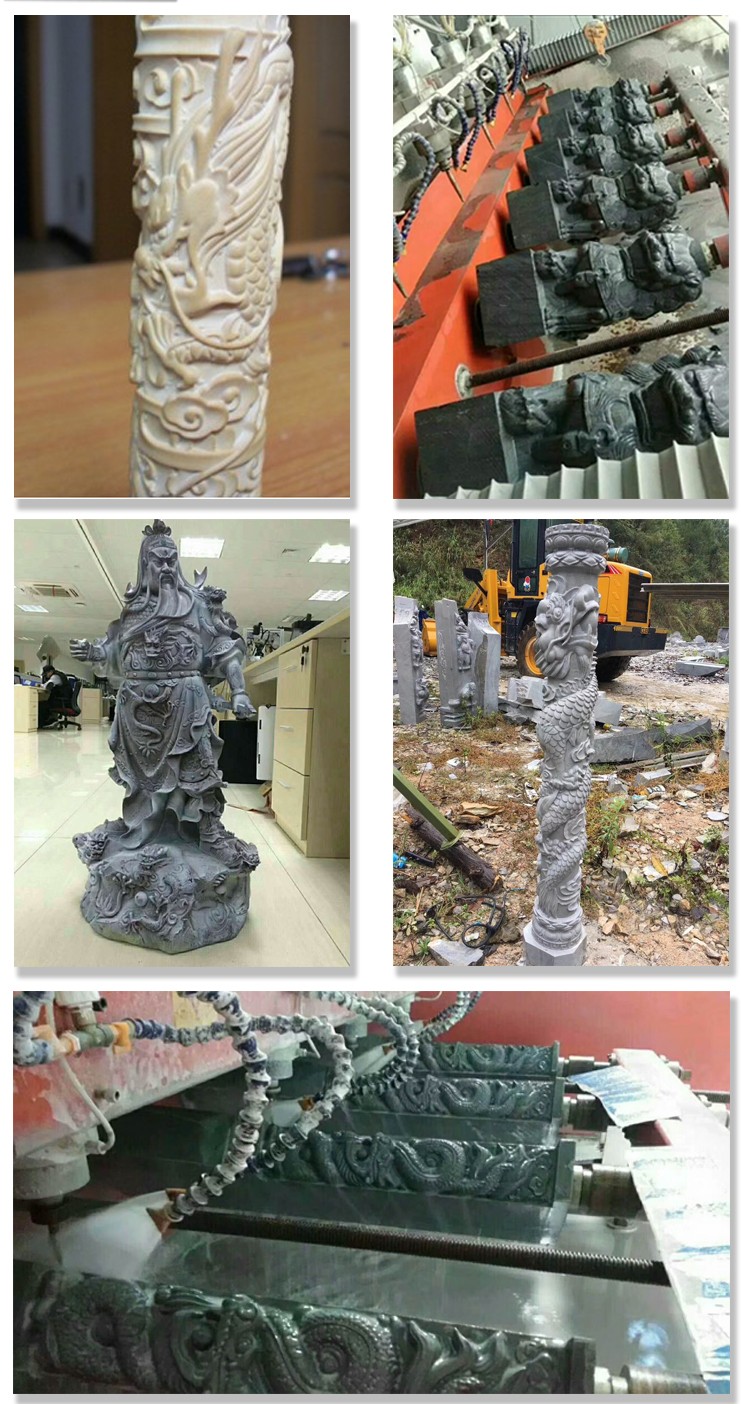

4. Product Display
5. After-sales service
1) Detailed installation instructions.
2) Detailed software operation training.
3) 24-hour online, contact us at any time if you have any product questions to help you solve the problem.
