CNC copper engraving machine

Brand: RETU
Model: 4040 cnc copper engraving machine
Operation mode: X, Y, Z axis
Spindle power: 2200KW
Spindle speed: 24000rpm
Processing size: 400*400mm
Working voltage: 220V
After-sales service: One-year warranty

The machine provides one year quality warranty and comes with a tool box (specified spindle tool, spindle replacement tool, installation instructions, etc.)

Select the number of specifications

Please check the product information you want!

Product Detail

Stable body high-speed spindle Imported original AI intelligent

private server CNC system

AI intelligent CNC operating system

Easy to operate, independent operation, multiple options.

Selected imported high-quality parts and components, and the assembly process is in line with international standards.

Original imported linear guide rail

Japan Panasonic servo motor

Taiwan original TBI ball screw

Original imported NSK brand bearings

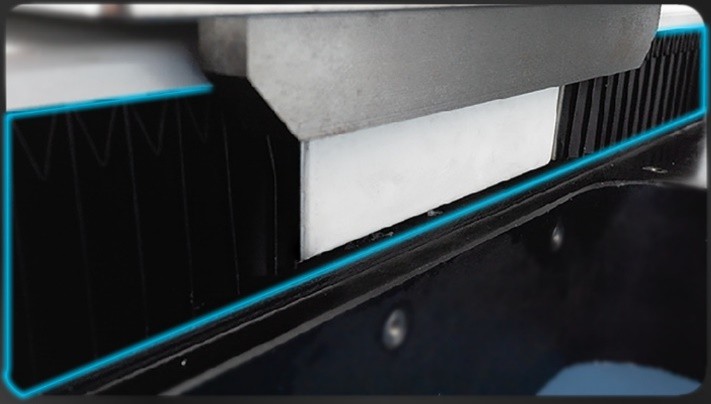

The Y axis is equipped with a dust protection device to ensure the normal operation of the screw rod and linear guide and to prevent dust

The main shaft bearing seat is made of cast iron, which is more stable and durable than ordinary cast aluminum, with less deformation and stronger.

Product Parameters

Equipment name	RETU 4040 semi-enclosed high-speed engraving machine
Dimensions	8609301700mm
Net weight of the whole machine	640KG
Working stroke	400400150mm
Feed height	220mm
Positioning accuracy	≤±0.010mm
Repeat positioning accuracy	≤±0.010mm
Spindle speed	1000-24000 rpm
Spindle power	2200W
Inverter	Automatic vector inverter
Inverter power	2200W
Working voltage	220V
Operation mode	XYZ three-axis processing
Operation speed	12000mm/min
Bed structure	High-quality material welding body
Motion motor	Stepper motor/servo motor
Ball screw	TBI ball screw
Linear guide	Taiwan original linear guide rail
Tool specifications	Handle diameter within 12mm

One machine Five fields Thousands of materials Automation equipment parts

The application of the machine is not limited to the engraving of copper plates, but can also be used for engraving of acrylic, rubber, plastic, aluminum alloy and other materials. It is a multi-purpose machine with a wide range of uses.

Automation equipment parts

Mobile phone glass

Highlight Bevel

Non-metallic materials

Metallurgy processing

FAQ:

Q:What's the delivery time?

A: Within 10 days for delivery after PO confirmed on both sides.

Q: What's the payment terms?

A: T/T 30% deposit 70% against BL copy ; L/C

Q: Are you factory or trading company?

A: We're factory, and can do exporting ourselves and trading others if you want LCL.

Q:How's your capacity in your workshop?

A: We have 6 production lines in our workshop, 30 machines can be produced in 1 month
